Light Distribution with Linear High Bay and Low Bay Fixtures:
Linear LED high bay and low bay fixtures are available in a variety of light distributions including medium beam fixtures and wide light distribution designs. Narrow and medium distribution fixtures have a Type 1 or Type 5 light distribution. These distribution types are ideal for aisles or higher ceilings. Placing fixtures parallel to aisles is approximately 50 percent more efficient than a perpendicular alignment and helps decrease eye strain. This layout is also easier to control with motion sensors. Wide distribution fixtures give off a broader light distribution and are better suited for open layouts to provide a uniform light for commercial buildings and areas. Fixture with a medium light distribution are somewhere in between. The light distribution is round rather than linear, but the beam is more concentrated, casting very little of the light outside of a 0-270 degree zone.
Specifications:
| Nominal Wattage | 40W | 60W |
| Lumens | 4,400 | 6,600 |
| LED Lifetime | 100,000 hours | 100,000 hours |
| Color Temperature | 4500K-5500K (2500 Optional) | 4500K-5500K (2500 Optional) |
| Power Factor | 0.95 | 0.95 |
| Temperature Range | -30℃ to +45℃ | -30℃ to +45℃ |
| Certifications | RoHS, ETL, CE, CB | RoHS, ETL, CE, CB |
| DLC Listed | Yes | Yes |
| Dimensions (in) | 39.8″x85″x40″ | 59.4''x3.3''x1.6'' |
| HID Equivalent | 150W | 250W |
| Efficacy | 110 Lm/W | 110 Lm/W |
| Color | Pure White | Pure White |
| Operating Voltage | AC100-277V (347/480 Optional) | AC100-277V (347/480 Optional) |
| CRI | >80 | >80 |
| Dimmable | YES | YES |
| Optical Control | YES | YES |
| Enclosure Protection | IP66 | IP66 |
| Warranty | 5 Years | 5 Years |
| Weight | 4.9 lbs | 6.9 lbs |

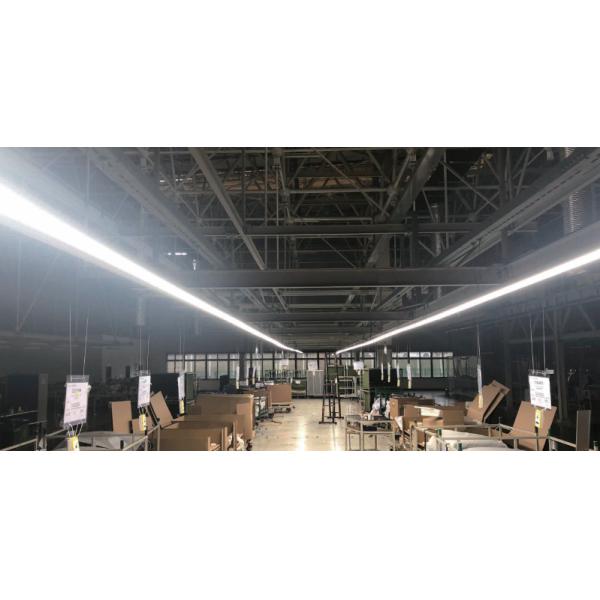

LED Linear High Bay Light:
LINEAR DESIGN:
Linear design replaces fluorescent strip lighting. LED module provide a variety of lumen outputs and beam angles with a single housing design. Suitable for warehouse/manufacturing facilities, convention centers/sports arenas, big box retail stores, cold storage facilities and gymnasiums.
SUPERIOR PERFORMANCE:
100,000 hour expected lifetime. Advanced sensor and system controls provide additional efficiency and extended performance.
High performance OSRAM/ LED chips.
RELIABLE QUALITY ASSURANCE:
Aluminum housing and superior thermal management system ensures reliability and long lasting performance. IP66 weather protection.
Overview:
Elite LED Linear High Bay fixtures series are DLC Listed & ideal for one-to-one replacement for conventional HID, T8 and T5 fluorescent in locations with scalability for high ceiling applications 15' to 40' ceiling such as warehouse, factory, Convention Centre, Retail, Showroom & Storage Lighting etc.
High bay fixture offers 50,000 hours life and substantially reduces maintenance costs and is available with high lumen outputs from 4400 to 6600 lumens. Benefits include high efficiency, long life, excellent color rendering, instant on and improved uniformity for warehouses, assembly, gymnasiums and dock areas.
-
Suitable for damp location
-
Good thermal management
-
Superior Photometric Performance
-
0-10V Dimming function, Dimming range 10-100%
-
Reliable driver offers longer lifetime up to 50,000 hours
-
Excellent light distribution and Lumen output
-
5 Years Limited warranty
-
Easy to install
